The following spare parts/accessories are available for Wixey Saw Fence Digital Readout.

WR7001 Replacement Readout
WR7002 Readout Track Extension Kit
WR7003 Sensor Strip Set
WR7004 Mounting Hardware Kit

WR7001 Replacement Readout

To add a 2nd display module to your system or to replace a damaged unit.

Price: $40.00

ITEM	Part #	Description	QTY.
1	HR1002	Readout Assembly	1
2	CR2032	Battery	2

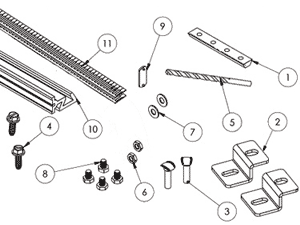

WR7002 Readout Track Extension Kit

Contains everything needed to extend your Readout track an additional 31 ½".

Note: Although you can add as many sections as you want, your Digital Readout display module has a maximum continuous measuring range of 99.9" or 999mm in either direction.

Price: $55.00

ITEM	Part #	Description	QTY.
1	HR1003	Wedge	1
2	HR1004	Rail Mounting Bracket	2
3	HR1007	Tapered T-Bolt	2
4	HR1008	M6 X 20 Self Tapping	2
5	HR1009	M 5.4 drill bit	1
6	HR1011	M6 Hex Nut	2
7	HR1013	M6 Washer	2
8	HR1005	M6 X 8mm long	4
9	HR1016	Sensor Strip Gauge	1
10	HR1017	Scale Extrusion	1
11	HR1000	Sensor Strip	2

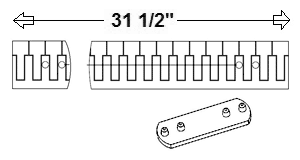

WR7003 Sensor Strip Set

2 pieces of 31 ½" sensor strip and an alignment gauge to replace damaged strips.

Price: $35.00

ITEM	Part #	Description	QTY.
1	HR1016	Sensor Strip Gauge	1
2	HR1000	Sensor Strip	2
3	Packing Tube	Packing Tube	1

WR7004 Mounting Hardware Kit

A complete set of mounting hardware like originally supplied with your WR700 Saw Fence Digital Readout kit.

Price: $15.00

or select any single hardware item from the pulldown menu

ITEM	Part #	Description	QTY.
1	HR1001	T Square Bracket	1
2	HR1003	Wedge	1
3	HR1004	Rail Mounting Bracket	4
4	HR1006	M4 X 12mm	2
5	HR1007	Tapered T-Bolt	4
6	HR1008	M6 X 20mm	4
7	HR1009	M 54. Drill Bit	1
8	HR1010	M 3.5 Drill Bit	1
9	HR1011	M6 Hex Nut	4
10	HR1013	M6 Washer	4
11	HR1014	Universal Bracket	1
12	HR1005	M6 X 8mm	4
13	HR1016	Sensor Strip Gauge	1
